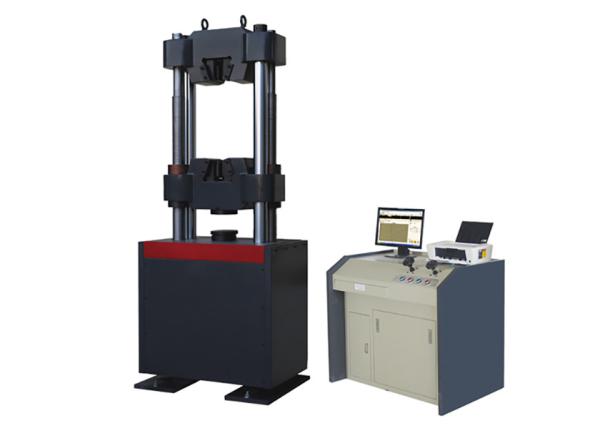

Digital Display Hydraulic Universal Testing Machine High Accurate Load Cell
HD-B611-S Universal Test Machine.pdf
HD-B616-1 30T Hydraulic Universal Test Machine.pdf...
HD-B616-2 60T Hydraulic Universal Test Machine.pdf...
HD-B616-3 100T Hydraulic Universal Test Machine.pd...
HD-B616-4 200T Hydraulic Universal Test Machine.pd...
1. instroduction
Universal Material Hydraulic Tensile Testing Machine With High Accurate Load Cell is designed of electro-hydraulic digital display and manual hydraulic loading system, main engine controller separately fixed. It has the characteristics of operation amenity, working steady, high accuracy and loading steady. It can implement the experimentations such as the tensile, compression, bending, cutting etc. to the metal, nonmetallic composite materials.
2. structure
The main engine consists of an adjustable support (base, screw thread pole, moveable crossbeam (lower clamp set)) and a working frame (working oil tank, piston, platform, support crossbeam (upper clamp set)). Element of the machine: high-pressure oil pump supply oil to the working oil tank, the piston moves and press board and upper crossbeam to do stretch and press test. The stretch test is done in the space between upper crossbeam and movable crossbeam. The life motor, gear, chain drive rotate at a same speed to move the crossbeam.
3. characteristics
Universal Material Hydraulic Tensile Testing Machine With High Accurate Load Cell has advantages such as high precision, light weight, easy operation, clamping automatic hydraulic pressure, long use life and so on. It is applicable for detecting various indexes such as tension, compression resistance, bending etc. to metal and non-metallic material in various laboratories.
Main specifications
| Model: | HD-B616 |
| Max. Test load: | 60T |
| Relative error of indicate value of load : | ±1% |
| Max. Ram stroke: | 250mm |
| Max. Tensile space: | 800mm(including piston stroke) |
| Max. Compression space: | 700mm(including piston stroke) |
| Display: | Computer control and display |
| Tensile grips for round specimen : | φ6-φ26mm |
| Tensile grips for flat specimen: | 0-15mm |
| Distance for two columns: | 500mm |
| Upper and lower platen size: | 200x200mm |
| The span of bending: | 450mm |
| Width of bending roller: | 140mm |
| Dia. of bending roller: | 30mm |
| Clamping mode: | Hydraulically |
| Transducer: | load cell |
| Deformation measuring: | YYU–10/50 |
| Dimensions of load frame : | 990×600×2435mm |
| Dimension of controller : | 1140×700×930mm |
| All weight: | 2800kg |
Main standard accessories
| Upper and lower platen for compression(200x200mm) | 1 set |
| Extensometer | 1 set |
| Round specimen grip for tensile ( φ6-φ26mm ) | 1 set |
| Flat specimen grip for tensile ( 0-15mm ) | 1 set |
| Bending accessories | 1 set |
| High accurate load cell | 1 set |
| High precision photoelectric encoder Measuring the displacement | 1 set |
| High pressure pump | 1 set |
| Proportion Valve | 1 set |
| Electro-hydraulic servo valve | 1 set |
| Shearing accessories ( Optional accessories) | 1 set |
Specifications
1. it is digtial type
2. it is hydraulic
3. it can do the test of tensile, compression, bending, and so on
1. instroduction
Model WES-300B hydraulic universal testing machine UTM is designed of electro-hydraulic digital display and manual hydraulic loading system, main engine controller separately fixed. It has the characteristics of operation amenity, working steady, high accuracy and loading steady. It can implement the experimentations such as the tensile, compression, bending, cutting etc. to the metal, nonmetallic composite materials.
2. structure
The main engine consists of an adjustable support (base, screw thread pole, moveable crossbeam (lower clamp set)) and a working frame (working oil tank, piston, platform, support crossbeam (upper clamp set)). Element of the machine: high-pressure oil pump supply oil to the working oil tank, the piston moves and press board and upper crossbeam to do stretch and press test. The stretch test is done in the space between upper crossbeam and movable crossbeam. The life motor, gear, chain drive rotate at a same speed to move the crossbeam.
3. characteristics
Computer Control And Display Hydraulic Metal Tensile Testing Machine has advantages such as high precision, light weight, easy operation, clamping automatic hydraulic pressure, long use life and so on. It is applicable for detecting various indexes such as tension, compression resistance, bending etc. to metal and non-metallic material in various laboratories.
