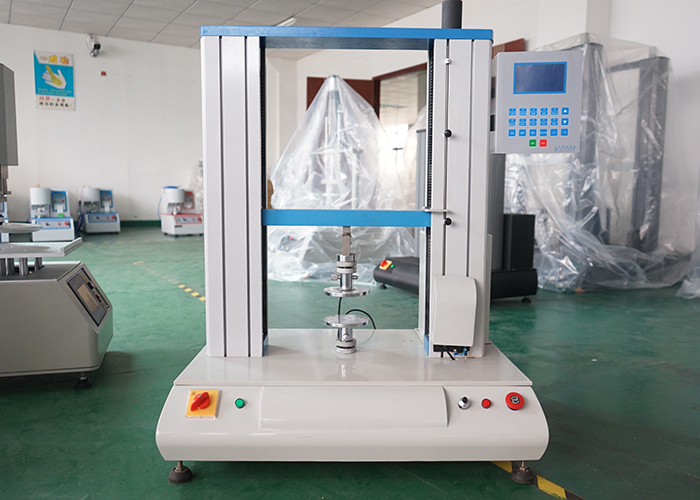

Ring Crush And Edge Compressive Tester ISTA Packaging Testing Machine

Name: Ring Crush And Edge Compressive Tester ISTA Packaging Testing Machine
Brand: Haida
Price: 1 USD

Ring Crush And Edge Compressive Tester ISTA Packaging Testing Machine Manufactures

Brand Name : Haida

Model Number : HD-A513-C

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Supply Ability : 300 Sets per Month Haida

Delivery Time : 20 days after order confirmed

Packaging Details : each set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Product Name : Ring Crush And Edge Compressive Tester

Resolution : 1/250,000

Precision : < 0.25%

Display Mode : LCD

Contact Now

Ring Crush And Edge Compressive Tester ISTA Packaging Testing Machine

Ring Crush and Edge Compressive Tester.pdf

Product Description:
Ring Crush and Edge Compressive Tester can do a full range of testing, which includes Ring Crush Testing, Flat Crush testing, Edge Compressive Testing, Adhensive Strength Testing and other general compression tests, to a variety of materials like paper, packaging materials, etc. It is a multi-functional testing equipment.

The main technical parameters :

Capacity (Optional)	10, 20, 50, 100, 200 kg
Resolution	1/250,000
Precision	< 0.25%
Operation Mode	Computer
Display Mode	LCD
Platen	100×100 mm or depending on the diameter of the flat crush sample
Compressed Space	500 mm
Platen Parallelism	± 0.05 mm
Ring Crush Sample	152×12.7 mm
Edge Crush Sample	25×100 mm
Test Speed	12.7 mm/min
Dimension (L×W×H)	790×510×1060 mm
Weight	Approx. 51 kg
Power	AC220V, 1.5A

Specifications:
Ring Crush and Edge Compressive Tester
1.2 years warranty
2.multi-functional equipment
3.paper ,corrugated box
4.with stock
