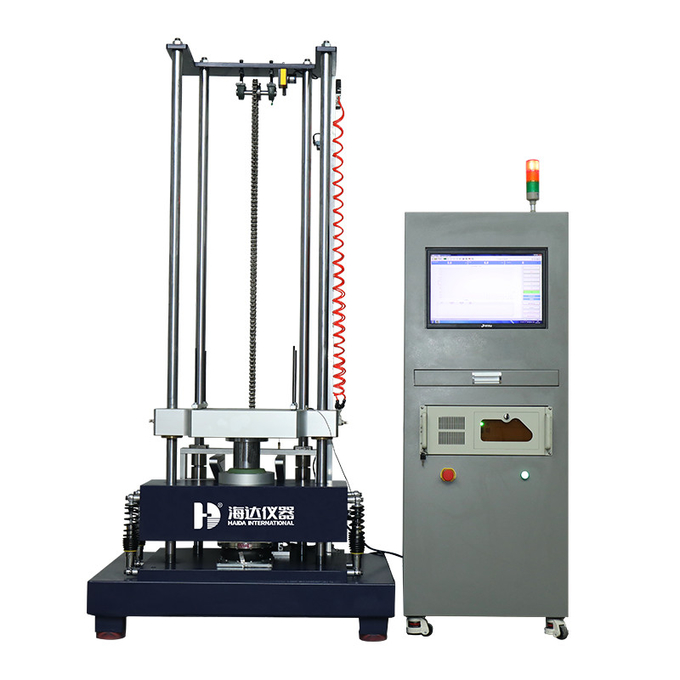

Battery Shock Test System Battery Shock Impact Testing Machine Accelerated Mechanical Shock Impact Equipment

Name: Battery Shock Test System Battery Shock Impact Testing Machine Accelerated Mechanical Shock Impact Equipment
Brand: Haida
Price: 1 USD

Battery Shock Test System Battery Shock Impact Testing Machine Accelerated Mechanical Shock Impact Equipment Manufactures

Brand Name : Haida

Model Number : HD-G809

Certification : CE,,ISO

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram

Supply Ability : 300 Sets per Month

Delivery Time : 20 days after order confirmed

Packaging Details : each set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Impact Peak Acceleration Range : Half Sine Wave: 150

Pulse Duration : Half Sine Wave: 0.5~30ms

Test Requirement : 150g, 6ms; Test Standard : Un38.3

Impact Waveform : Half Sine Wave

Speed Variation : Tolerance ±15%

Control Method PLC : Touch Screen Control

Power Supply : 380V±10% AC50Hz

Table Size : 400mm*400mm (Can Be Customized)

Equipment : Weight 3600kg

Contact Now

High Acceleration Shock Test System

Description:

The impact test bench can be used for impact testing of test products, mainly for small specimens for higher impact acceleration testing. Assess the extent to which the test product withstands impact damage. Often used in environmental testing of electronic components, electronic circuit boards, etc. This test equipment complies with "Basic Environmental Test Specifications for Electrical and Electronic Products Ea: Impact Test Method" and "IEC68-2-27, Test Ea: Impact" and "MIF-STD202F " Specification requirements for impact test.

Battery Shock Test System Battery Shock Impact Testing Machine Accelerated Mechanical Shock Impact Equipment

Product Advantages

The size of the impact test bench is small, and the bench structure is carefully designed after finite element optimization analysis. The structure is strong and the frequency response is high. Through the high acceleration impact test, it can reach the acceleration duration of 0.3ms, and the impact half-sine wave conforms to the test specification. Built-in anti-secondary impact device, the table body is equipped with high-efficiency damping device, and the impact height is digitally set and executed automatically.

Technical Parameters

Maximum load:	100kg
Table size:	500mm×600mm
Impact peak acceleration range:	Half sine wave: 150~6000m/s²
Pulse duration:	Half sine wave: 0.5~30ms
Impact waveform:	Half sine wave
wave description difference	a) When the pulse duration is less than or equal to 3ms, the peak acceleration tolerance is ±20%; the pulse duration tolerance is ±15%; b) When the pulse duration is> 3ms, the waveform tolerance should be within the range specified by the standard.
Speed variation tolerance	±15%
Standards compliant	Requirements of GJB150, GJB360, GB2423.
Anti-secondary impact device	Adopt hydraulic braking device
Dimensions of impact table body	(1000×750×2450)(mm)
Weight of impact table:	3600kg
Power consumption:	5.5KVA
Working conditions:	A. Power supply voltage: 380V±10% AC50Hz
	B. Ambient temperature: 0ºC-40ºC
	C .Relative humidity: ≤90% (25ºC)
	D. Surrounding environment: no corrosive medium, dry and ventilated, Electromagnetic field interference and strong vibration sources that affect normal operation.

Equipment Composition

Gravity drop impact test bench body	1 set
Impact control measurement system	1 set
Acceleration sensor (including cable)	1 piece
Waveform generator	1 set
Connecting cable	1 set
Hydraulic system	1 set

Details

About us

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

Battery Shock Test System Battery Shock Impact Testing Machine Accelerated Mechanical Shock Impact Equipment

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
