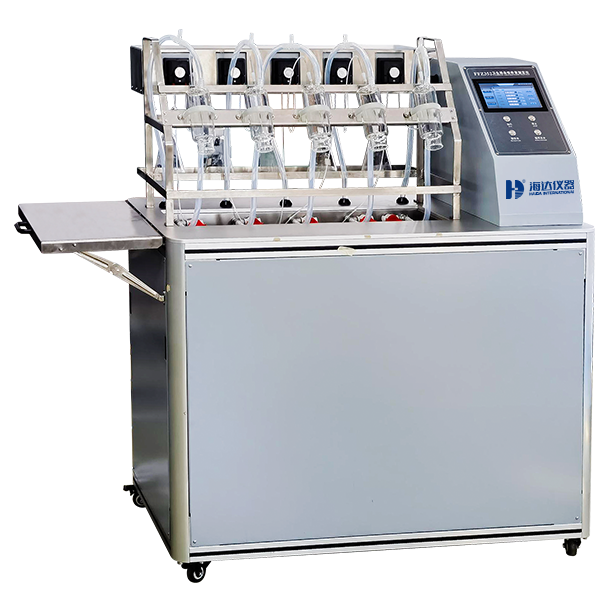

5014-HD Sanitary Tampon Absorption Tester with PLC Control

  • 1
  • 2
  • 3

Brand Name : Haida

Model Number : 5014-HD

Certification : CE、ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 300 Sets per Month

Delivery Time : 20 days after order confirmed

Packaging Details : each set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Function : compression test,Paper Tube Compressive Strength Test,Burst tester,tensile test,Paper Testing Instrument

Name : paper cup tube compressive strength tester,Paper testing instrument paper gsm tester/ bursting strength tester,paper testing instrument

Display : LCD,Digital display

Feature : easy to operate

Operation Method : Automatic

Product Type : Testing Instruments

Protection Device : Induction type protection device

Control : PLC control

Sensing Method : Pressure Transmitter

Stop : Stop test

Force Resolution : 1/500000 of the maximum test force fs

Vibration Mode : reciprocating

Contact Now

EQUIPMENT DETAILS OF 5014-HD SANITARY TAMPON ABSORPTION TESTER

5014-HD Sanitary Tampon Absorption Tester with PLC Control

MACHINE PRODUCTION

The Sanitary tampon absorption tester is used to simulate the environment in which tampons are used by dropping the test solution into the tampon absorption body at a defined flow rate, and characterizing the amount absorbed by calculating the difference in mass of the tampon before and after the test.

TEST STANDARD

T/CNITA 09102-2018 Appendix E

PRODUCT FEATURES

1. Colour touch screen display and control, Chinese and English interface, menu operation mode.

2. Test time display in the test process, convenient test time adjustment.

3. The core control components using 32-bit multifunctional motherboard STMicroelectronics.

4. Peristaltic pump control plus liquid, plus liquid uniformity and stability.

STANDARD FEATURES

Item

Description

Water bath capacity

6 L

Testing station

5 stations

Water bath temperature

-5 ~ 100oc,

Accuracy ± 0.5oc

Internal circulation water metering pump flow rate

50 ± 2ml / h

External circulation water quantitative pump flow rate

0-24000ml / h (adjustable)

Pumping pipe

Inner diameter 6.4mm

Outer diameter 9.6mm

Needle size

Length 100mm,

Inner diameter 1.5mm, outer diameter 1.8mm

Triangular beakers

5 pcs

Power

220v, 50hz, 1kw

Dimensions(L*W*H)

800*500*1200mm

Weight

60kg



5014-HD Sanitary Tampon Absorption Tester with PLC Control 5014-HD Sanitary Tampon Absorption Tester with PLC Control 5014-HD Sanitary Tampon Absorption Tester with PLC Control
